WNMG-EA

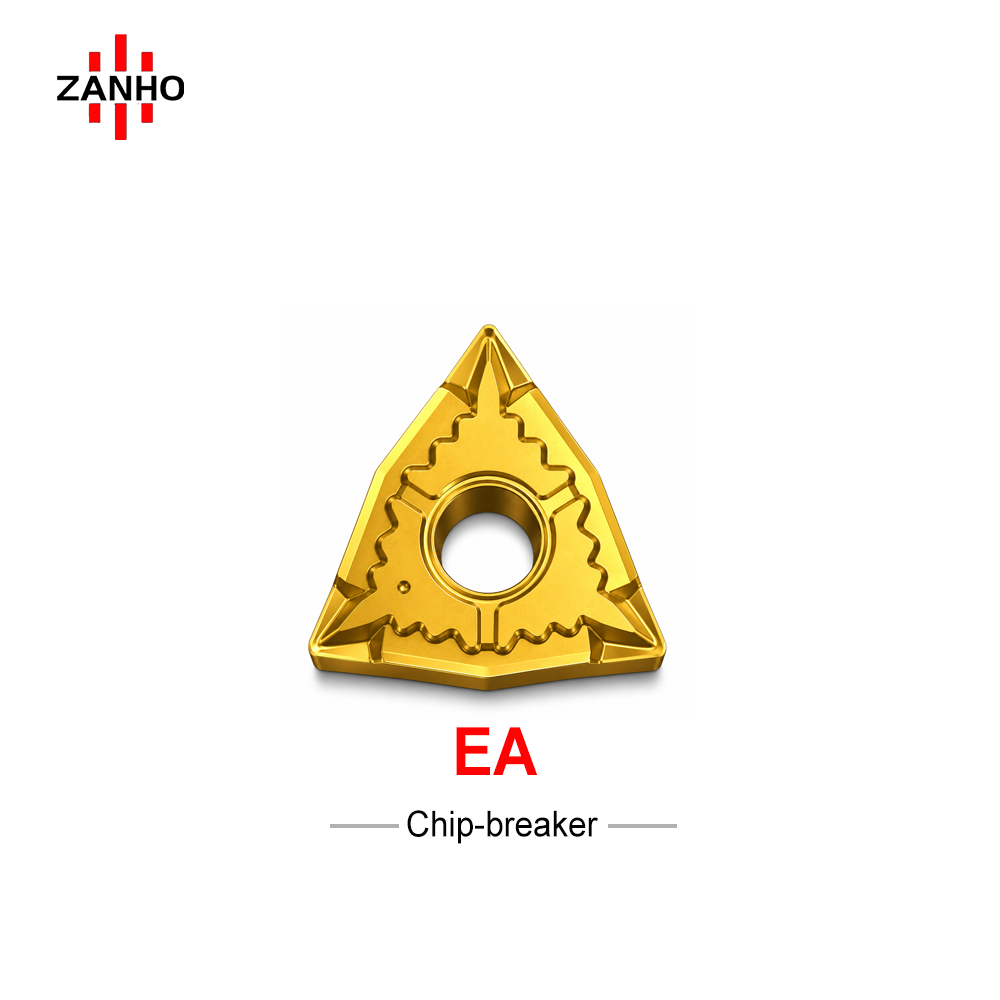

ZANHO WNMG-EA is a professional 80° trigon negative turning insert specifically designed for High-Precision Finishing. Featuring the specialized EA chipbreaker, it is optimized for stainless steel and heat-resistant alloys, delivering exceptional surface integrity and stable chip control at very light depths.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy in professional CNC machining.
  • EA Chipbreaker: Optimized for stainless steel and heat-resistant alloys, ensuring excellent chip breaking at very light depths of cut (ap as low as 0.1mm).
  • Trigon Stability: The negative trigon geometry provides 6 robust cutting edges, offering higher edge strength and better cost-efficiency than standard rhombic inserts.
  • Low Cutting Force: Sharp cutting edges minimize heat buildup and vibration, effectively preventing work hardening in sensitive workpiece materials.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
WNMG060404-EA 0.4 mm 0.05 - 0.20 0.1 - 1.5 mm
WNMG080404-EA 0.4 mm 0.10 - 0.40 0.1 - 1.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
