WNMG-EM

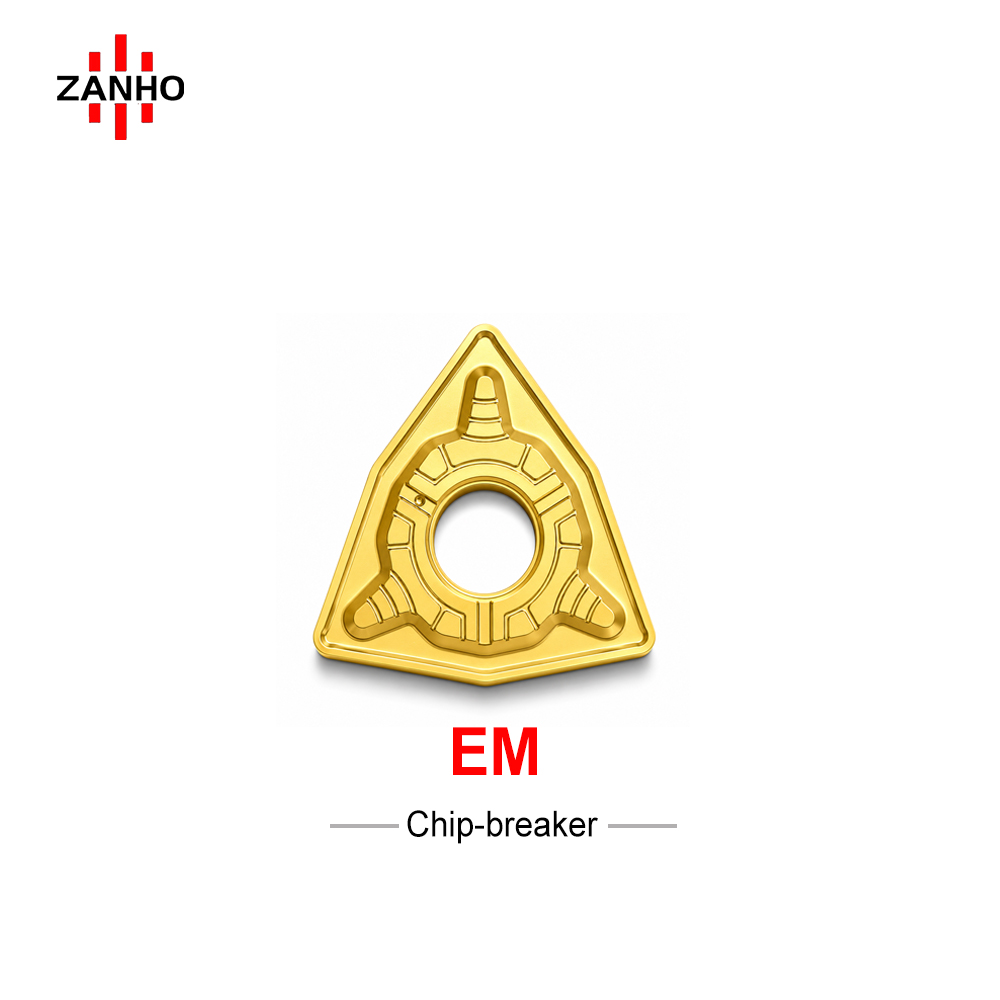

ZANHO WNMG0604/0804-EM series is a professional 80° trigon negative turning insert designed for Medium Machining. Featuring the balanced EM chipbreaker, it provides reliable chip evacuation and a strong cutting edge, making it ideal for general-purpose turning of steel, stainless steel, and cast iron with high stability.

Categories: WNMG Inserts

Download PDF

Key Performance & Features

Medium Machining Specialist: Optimized for semi-roughing to medium finishing, providing consistent performance across various cutting conditions.
EM Chipbreaker: Features a robust geometry designed for excellent chip breaking at medium feed rates, preventing chip clogging and tool wear.
High Edge Strength: The WNMG negative design ensures 6 stable cutting edges per insert, delivering exceptional cost-efficiency and resistance to edge chipping.
Versatile Application: Highly effective for continuous to lightly interrupted cuts in a wide range of materials, including carbon steel, alloy steel, and stainless steel.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
WNMG060404-EM	0.4 mm	0.15 - 0.55	0.8 - 3.0 mm
WNMG060408-EM	0.8 mm	0.15 - 0.55	0.8 - 3.0 mm
WNMG060412-EM	1.2 mm	0.15 - 0.55	0.8 - 3.0 mm
WNMG080404-EM	0.4 mm	0.10 - 0.45	0.8 - 4.0 mm
WNMG080408-EM	0.8 mm	0.12 - 0.45	0.8 - 4.0 mm
WNMG080412-EM	1.2 mm	0.12 - 0.45	0.8 - 4.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
