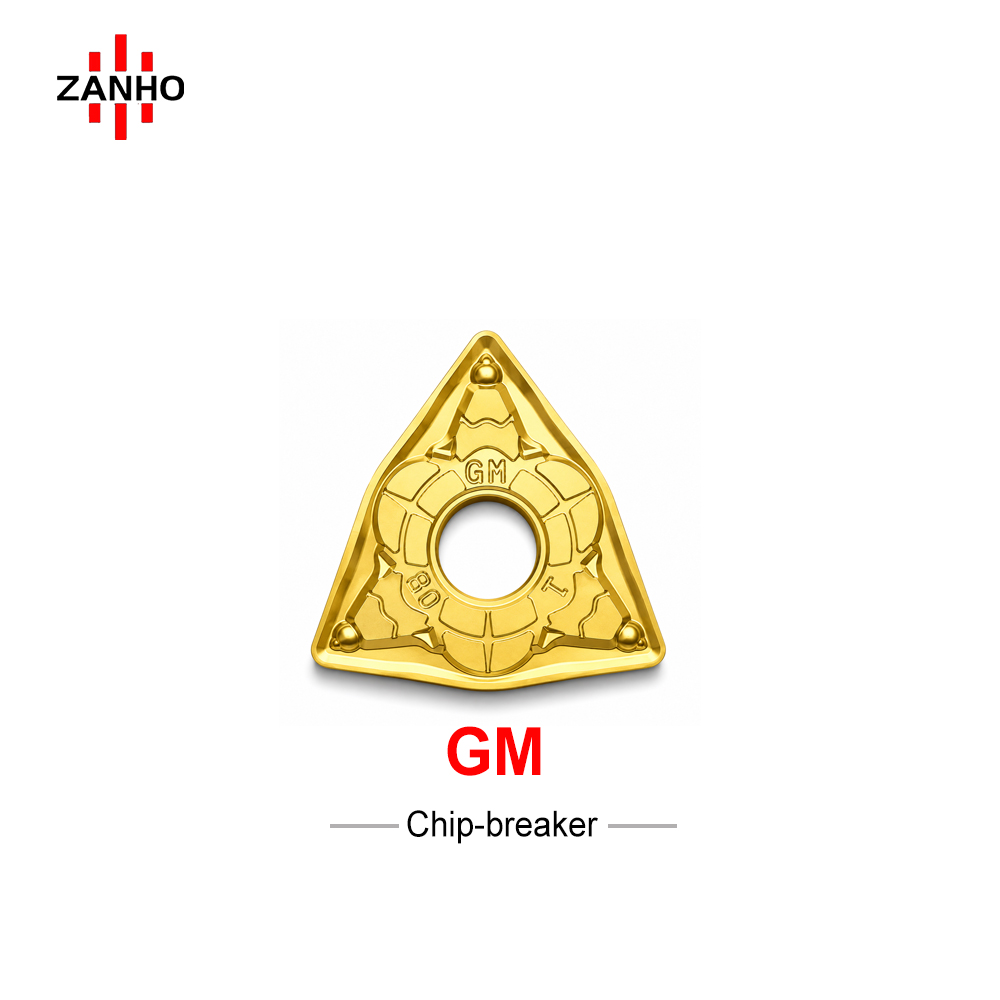

WNMG-GM

ZANHO WNMG0804-GM series is a high-performance 80° trigon negative turning insert specifically designed for Medium Machining. Featuring the specialized GM chipbreaker, it offers exceptional chip control and edge durability, making it ideal for general-purpose turning in steel and cast iron with high stability.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium finishing applications, delivering a perfect balance between cutting efficiency and tool life.
  • GM Chipbreaker: Specifically engineered for stable chip breaking at medium feed rates and cutting depths, preventing chip accumulation and surface damage.
  • Negative Trigon Geometry: The WNMG design provides 6 robust cutting edges, maximizing cost-efficiency while ensuring superior edge strength for heavy-duty operations.
  • Versatile Performance: Outstanding stability in continuous to lightly interrupted cuts across a wide range of materials, including Carbon Steel, Alloy Steel, and Cast Iron.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
WNMG080408-GM 0.8 mm 0.10 - 0.40 0.4 - 5.5 mm
WNMG080412-GM 1.2 mm 0.10 - 0.55 0.8 - 5.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
