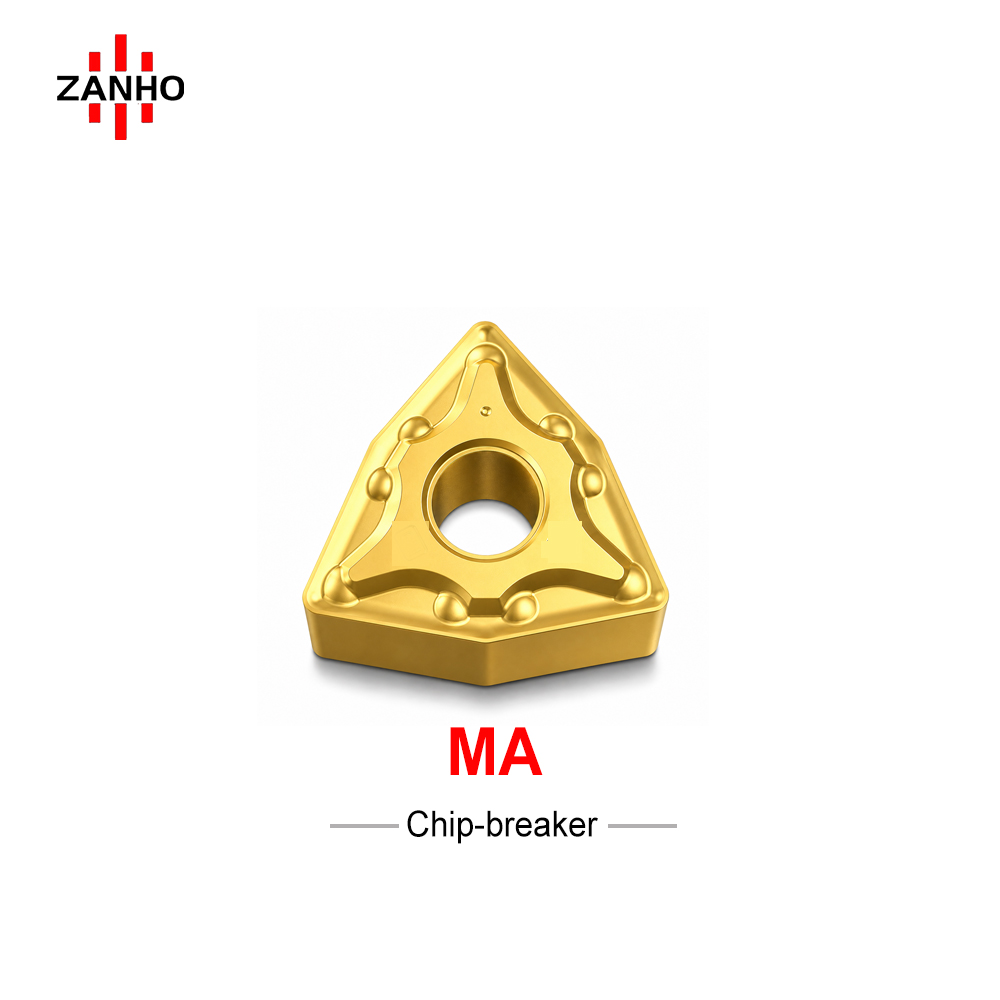

WNMG-MA

ZANHO WNMG0604/0804-MA series is a high-performance 80° trigon negative turning insert specifically designed for Medium Machining. Featuring the robust MA chipbreaker, it delivers reliable chip evacuation and excellent edge durability, making it ideal for general-purpose turning of steel and cast iron with superior stability.

Categories: WNMG Inserts

Download PDF

Key Performance & Features

Medium Machining Expert: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.
MA Chipbreaker: A highly versatile geometry designed for stable chip breaking at medium feed rates, effectively preventing chip nesting and workpiece damage.
Trigon Geometry: The WNMG negative design provides 6 robust cutting edges, offering significantly higher tool life and cost-efficiency compared to standard rhombic inserts.
Strong Cutting Edge: Enhanced edge toughness allows for stable machining even in slightly interrupted cuts or with varying depths of cut.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
WNMG060404-MA	0.4 mm	0.13 - 0.50	0.5 - 5.0 mm
WNMG060408-MA	0.8 mm	0.13 - 0.50	0.5 - 5.0 mm
WNMG060412-MA	1.2 mm	0.15 - 0.55	0.5 - 5.0 mm
WNMG080404-MA	0.4 mm	0.10 - 0.50	0.5 - 5.0 mm
WNMG080408-MA	0.8 mm	0.13 - 0.50	0.5 - 5.0 mm
WNMG080412-MA	1.2 mm	0.15 - 0.55	0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
