WNMG-MS

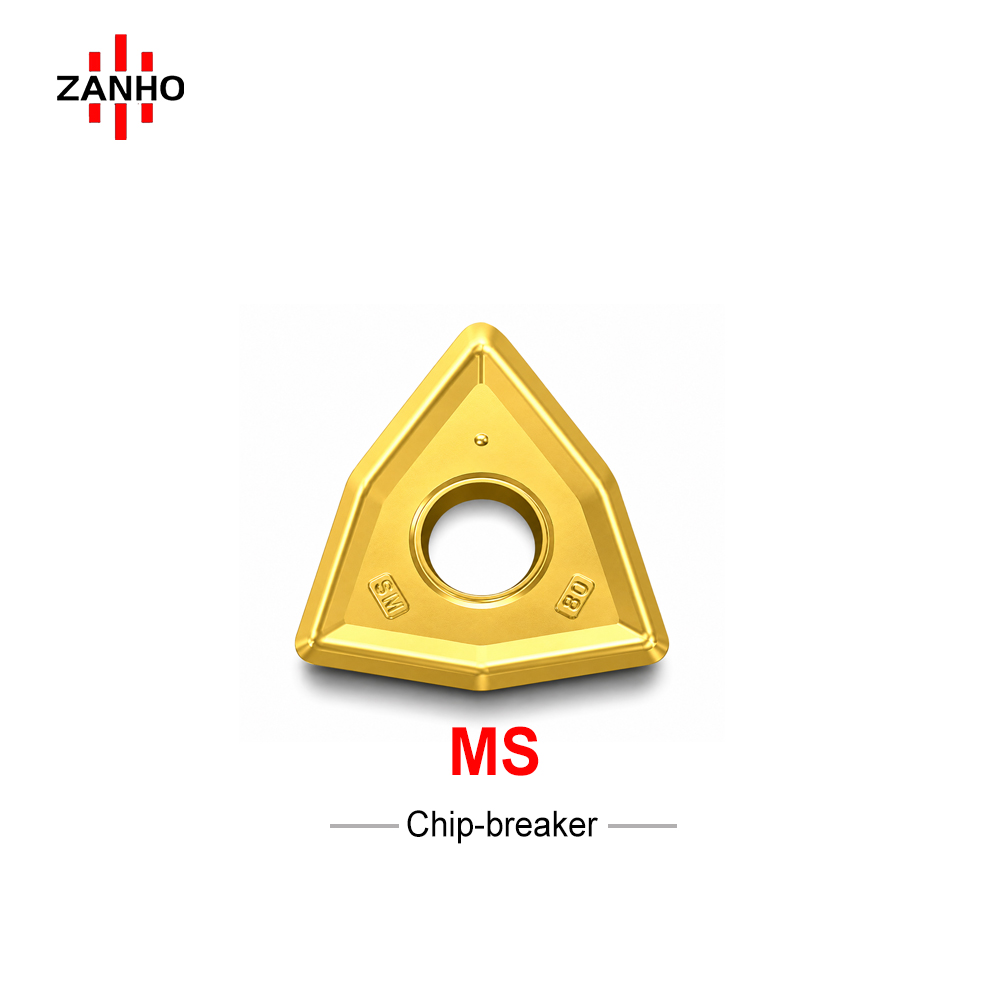

ZANHO WNMG0804-MS series is a robust 80° trigon negative turning insert specifically designed for Medium Machining. Featuring the specialized MS chipbreaker, it delivers exceptional chip control and stable cutting performance across a wide range of cutting depths, making it ideal for high-efficiency turning of steel and alloy components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium machining operations, providing a perfect balance between chip breaking and edge durability.
  • MS Chipbreaker: Engineered for stable chip evacuation at medium feed rates, effectively reducing cutting resistance and ensuring a smooth surface finish.
  • Trigon Stability: The WNMG negative design utilizes 6 robust cutting edges, maximizing cost-efficiency while ensuring superior strength during continuous or slightly interrupted cuts.
  • Strong Cutting Edge: Precision-ground edges enhance tool life and machining reliability, ideal for maintaining consistent quality in long-running turning tasks.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
WNMG080404-MS 0.4 mm 0.2 - 0.6 2.0 - 5.0 mm
WNMG080408-MS 0.8 mm 0.2 - 0.6 2.0 - 5.0 mm
WNMG080412-MS 1.2 mm 0.2 - 0.6 2.0 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
