WNMG-PF

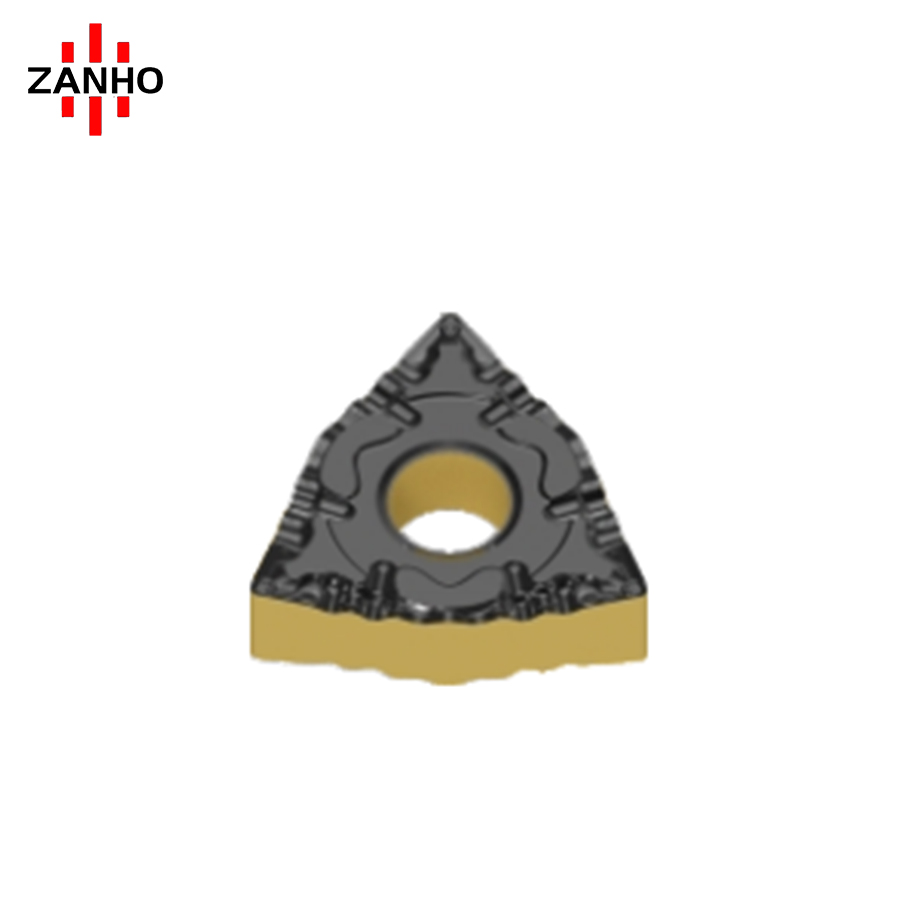

ZANHO WNMG080408-PF is a professional 80° trigon negative turning insert specifically designed for High-Precision Finishing. Featuring the specialized PF chipbreaker, it delivers exceptional surface integrity and stable chip control at light depths, making it ideal for the final machining stages of steel and stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy in professional CNC machining.

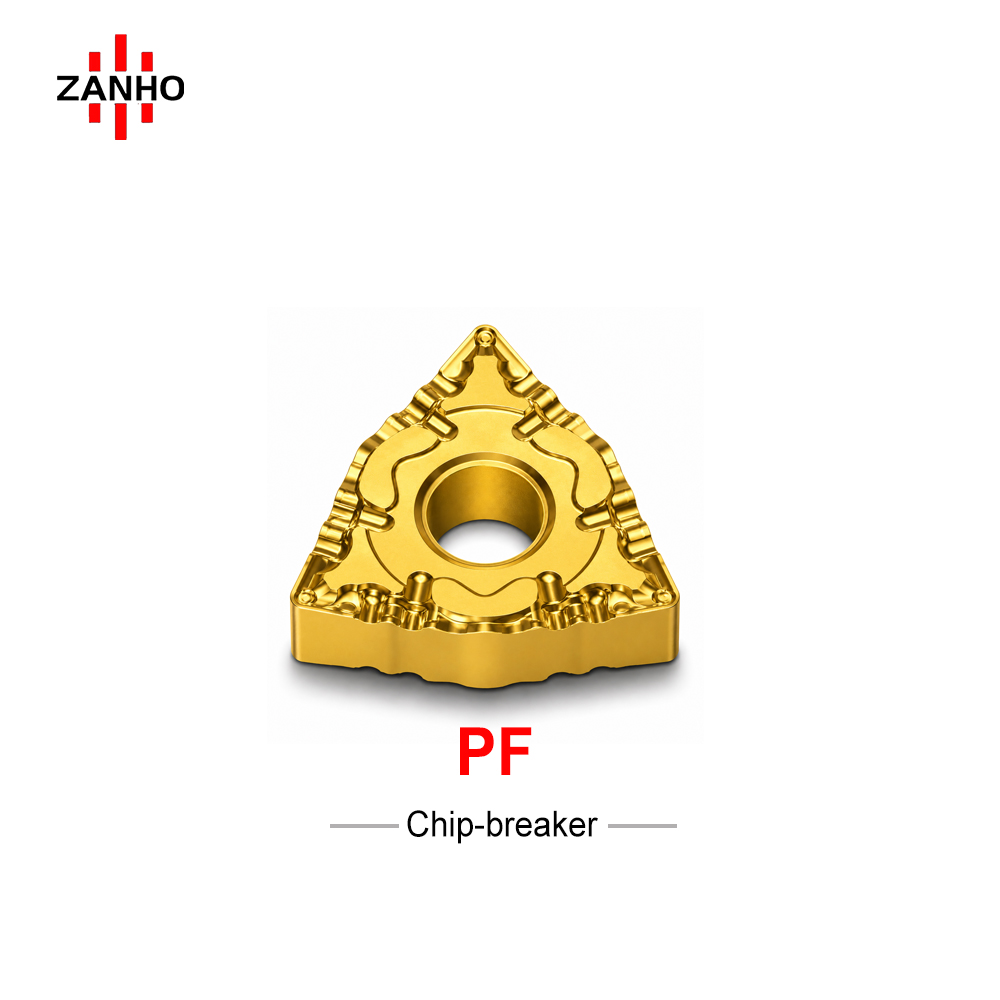

  • PF Chipbreaker: Optimized for light cutting depths and low feed rates, ensuring excellent chip breaking and preventing surface marring from long chips.
  • Trigon Stability: The WNMG negative geometry provides 6 robust cutting edges, offering higher edge strength and better cost-efficiency than standard rhombic inserts.
  • Smooth Cutting: Precision-ground edges reduce cutting resistance and heat buildup, ideal for maintaining tight tolerances even in long-running continuous turning.

Technical Specifications

Model Radius (re)
WNMG080408-PF 0.8 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
