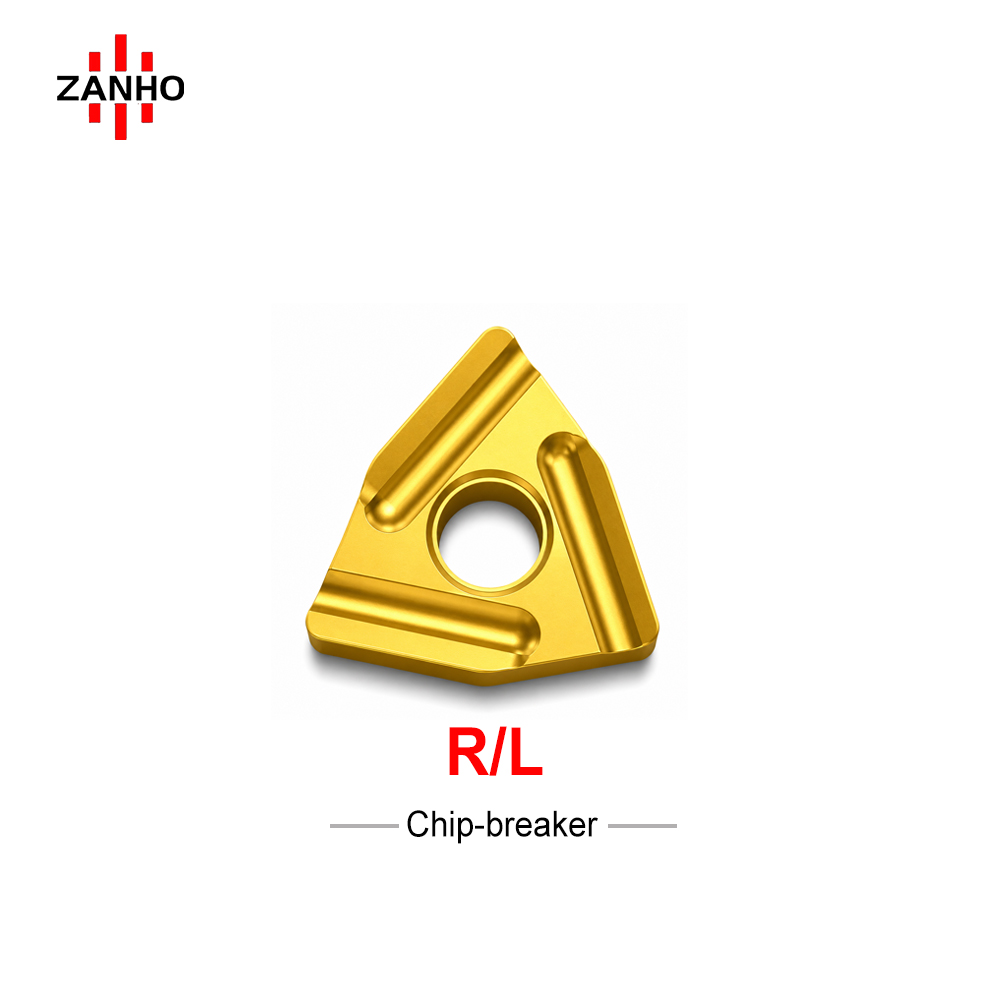

WNMG0804-S (L/R) | Medium Machining Carbide Turning Insert

ZANHO WNMG0804-S is a professional 80° trigon negative turning insert specifically designed for Medium Machining. Available in both Left-hand (L) and Right-hand (R) orientations, it features a specialized S chipbreaker that delivers exceptional chip control and stable cutting performance, making it ideal for high-efficiency turning of steel and alloy components.

Categories: WNMG Inserts

Download PDF

Key Performance & Features

Medium Machining Excellence: Optimized for semi-roughing to medium machining operations, providing a perfect balance between chip breaking and edge durability.
S Chipbreaker Technology: Engineered for stable chip evacuation across a wide feed range, effectively reducing cutting resistance and heat buildup.
L/R Directional Options: Specifically available in Left and Right-hand geometries to match diverse tool holders and complex machining paths.
Trigon Stability: The WNMG negative design utilizes 6 robust cutting edges, maximizing cost-efficiency while ensuring superior strength during continuous or slightly interrupted cuts.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
WNMG080404L-S	0.4 mm	0.15 - 0.30	0.8 - 3.0 mm
WNMG080404R-S	0.4 mm	0.15 - 0.30	0.8 - 3.0 mm
WNMG080408L-S	0.8 mm	0.20 - 0.40	1.0 - 3.5 mm
WNMG080408R-S	0.8 mm	0.20 - 0.40	1.0 - 3.5 mm
WNMG080412L-S	1.2 mm	0.20 - 0.40	1.0 - 3.5 mm
WNMG080412R-S	1.2 mm	0.20 - 0.40	1.0 - 3.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
