YNMG-ZF

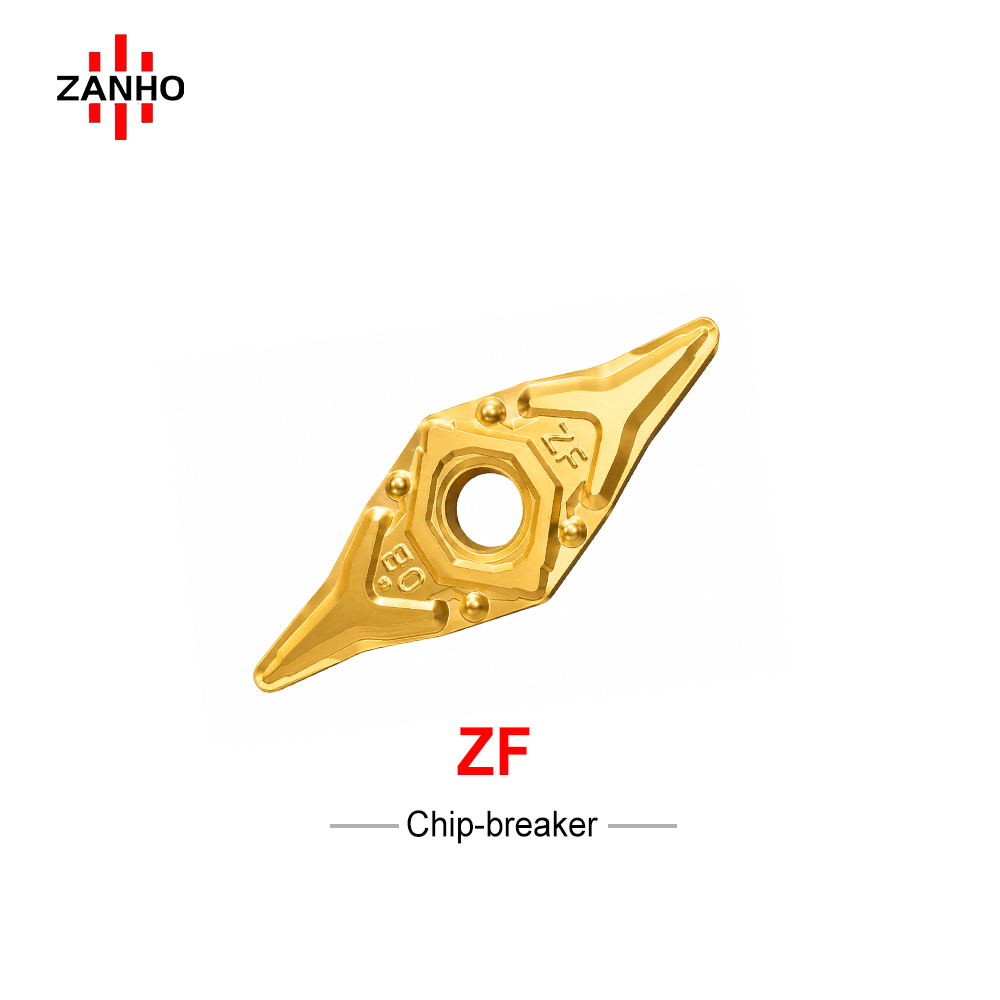

ZANHO YNMG1604-ZF series is a high-performance 35° rhombic negative turning insert specifically designed for Medium Machining. Featuring the specialized ZF chipbreaker, it delivers exceptional chip control and stable cutting performance across a wide range of feed rates, making it ideal for the versatile turning of steel and alloy components with high stability.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Specialist: Specifically optimized for medium turning operations, providing a perfect balance between cutting speed and tool life durability.
  • ZF Chipbreaker Geometry: Engineered for stable chip evacuation at varying feed rates, effectively reducing cutting resistance and heat buildup.
  • Rhombic Stability: The 35-degree negative rhombic design provides excellent clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
  • Strong Cutting Edge: Enhanced edge toughness allows for stable machining even in slightly interrupted cuts or with varying depths of cut.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
YNMG160404-ZF 0.4 mm 0.10 - 0.50 0.5 - 5.0 mm
YNMG160408-ZF 0.8 mm 0.20 - 0.50 0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining complexity.
